Talaria MX3 MX4 Complete Hardware Customization Kit

Complete anodized titanium full body hardware kit for the Talaria MX5/ MX4/ MX3. This kit covers all bolts/ screws that are easily visibly seen. Precision-machined from certified Titanium Grade 5 (6AL-4V) alloy.

Key Features

• Anodized / PVD Coated: Premium finish available in multiple colors
• Increased Corrosion Resistance: Built to withstand harsh riding conditions
• Certified Titanium Grade 5 (6AL-4V): Aerospace-grade alloy
• Rolled Threads: Greater fatigue strength compared to cut threads
• Excellent Strength-to-Weight Ratio: Pound for pound, titanium Grade 5 is stronger than steel — same strength at 45% of the weight
• 45% Lighter Than OEM: Significant weight savings without sacrificing strength
• Exclusively sold at Titanium Surron and authorized retailers only

Kit Includes

Almost every visible piece of hardware:

• M10 Upper linkage knuckle to swingarm bolt
• M10 Lower rear gearbox mount to frame bolt
• M8 Lower triangle mount to frame bolt
• M8 Lower left motor mount
• M8 Upper left motor mount
• M8 Lower linkage knuckle to triangle bolt
• M8 Lower rear shock bolt
• M8 Upper rear shock mount bolt
• M8 Upper and lower right motor mount bolt
• M8 Left and right foot peg frame bracket bolts
• M8 Subframe bolts
• M8 Sprocket bolts (MX5 only: shouldered bolt not available, kits come with non-shouldered bolts)
• M6 Lower rear skid plate bolts
• M6 Caliper bolts
• M6 Upper left and right frame bolts (upper battery plate)
• M6 Lower left and right battery tray bolts
• M6 Headlight mount bolts
• M6 Rear rotor bolts
• M6 Mud guard mounting bolts
• M6 Chain guard mounting bolts
• M6 Plastic gearbox cover mounting bolts
• M6 Upper front skid plate mounting bolts
• M6 Left and right controller mounting bolts
• M6 Seat front plastic cover bolts
• M5 Lower left and right horn cover bolts
• M5 Front rotor bolts
• M5 Key switch cover bolts
• M5 Upper horn cover bolt
• Battery lid bolts (MX3 requires M8x1.0 tap)
• Peg pins
• Axle nut (M12)
• Kickstand bolt

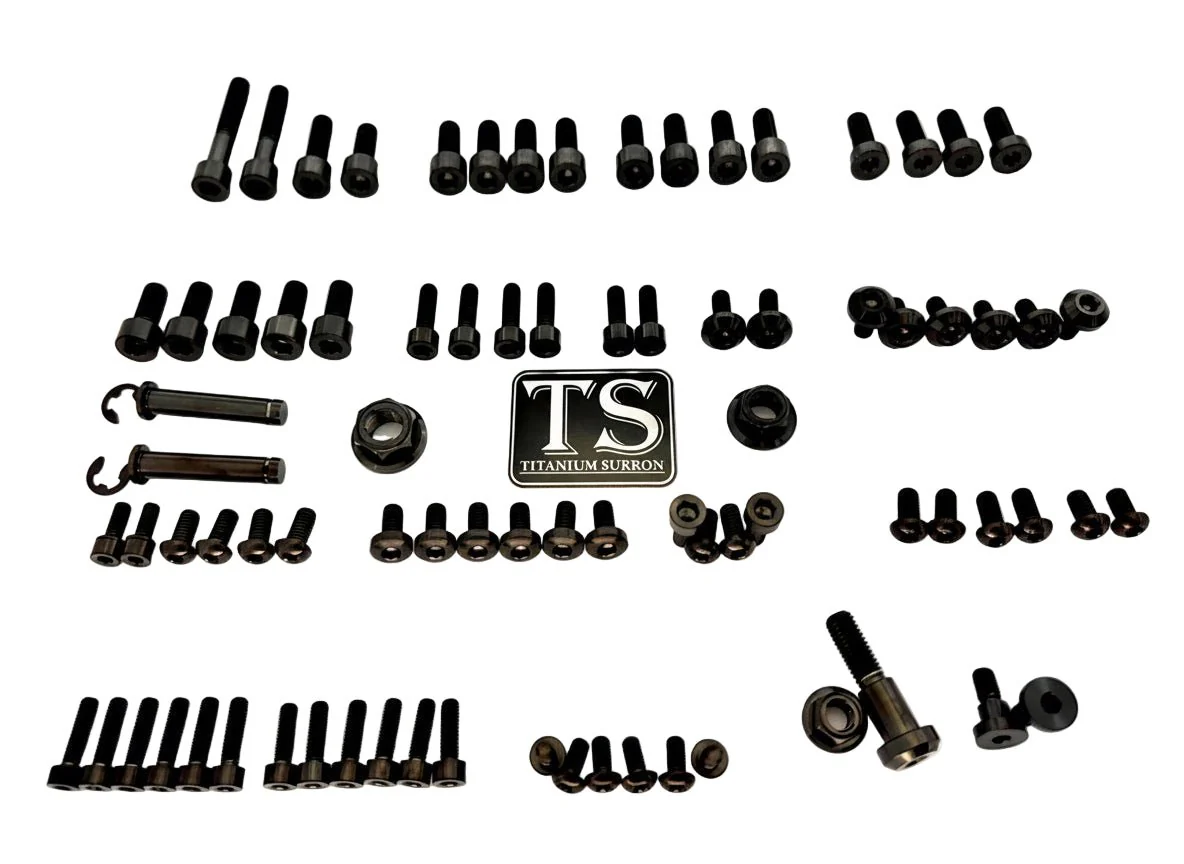

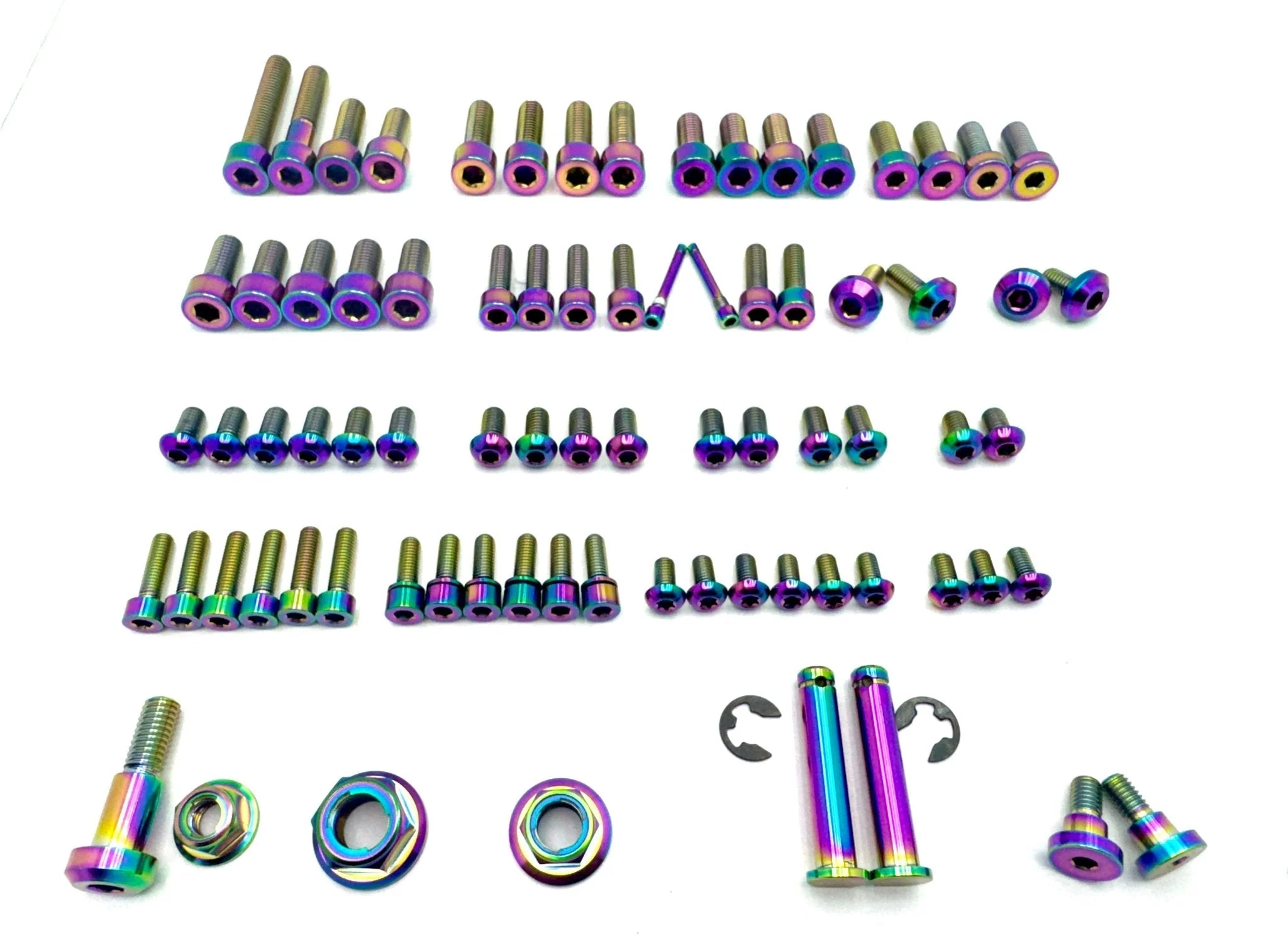

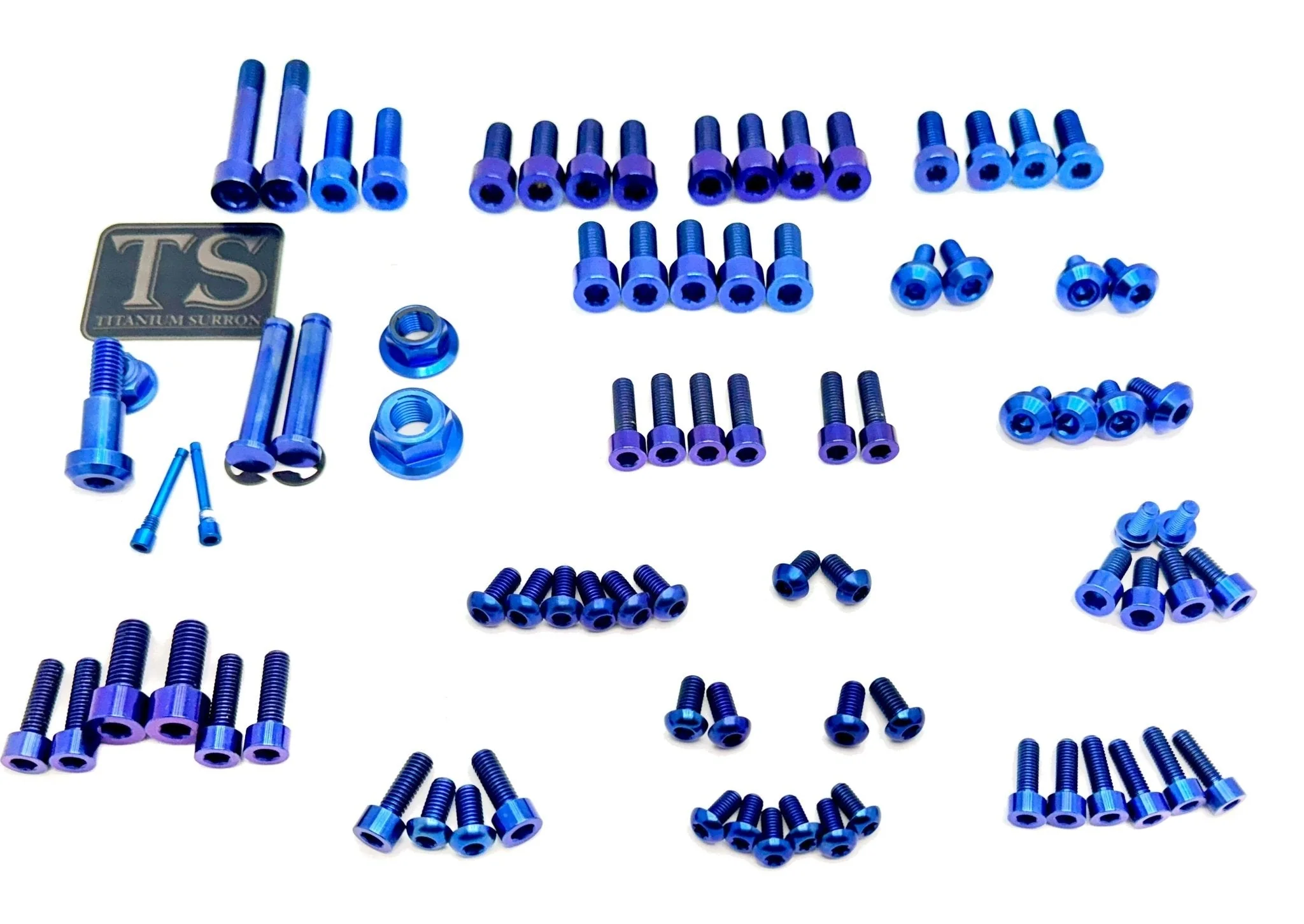

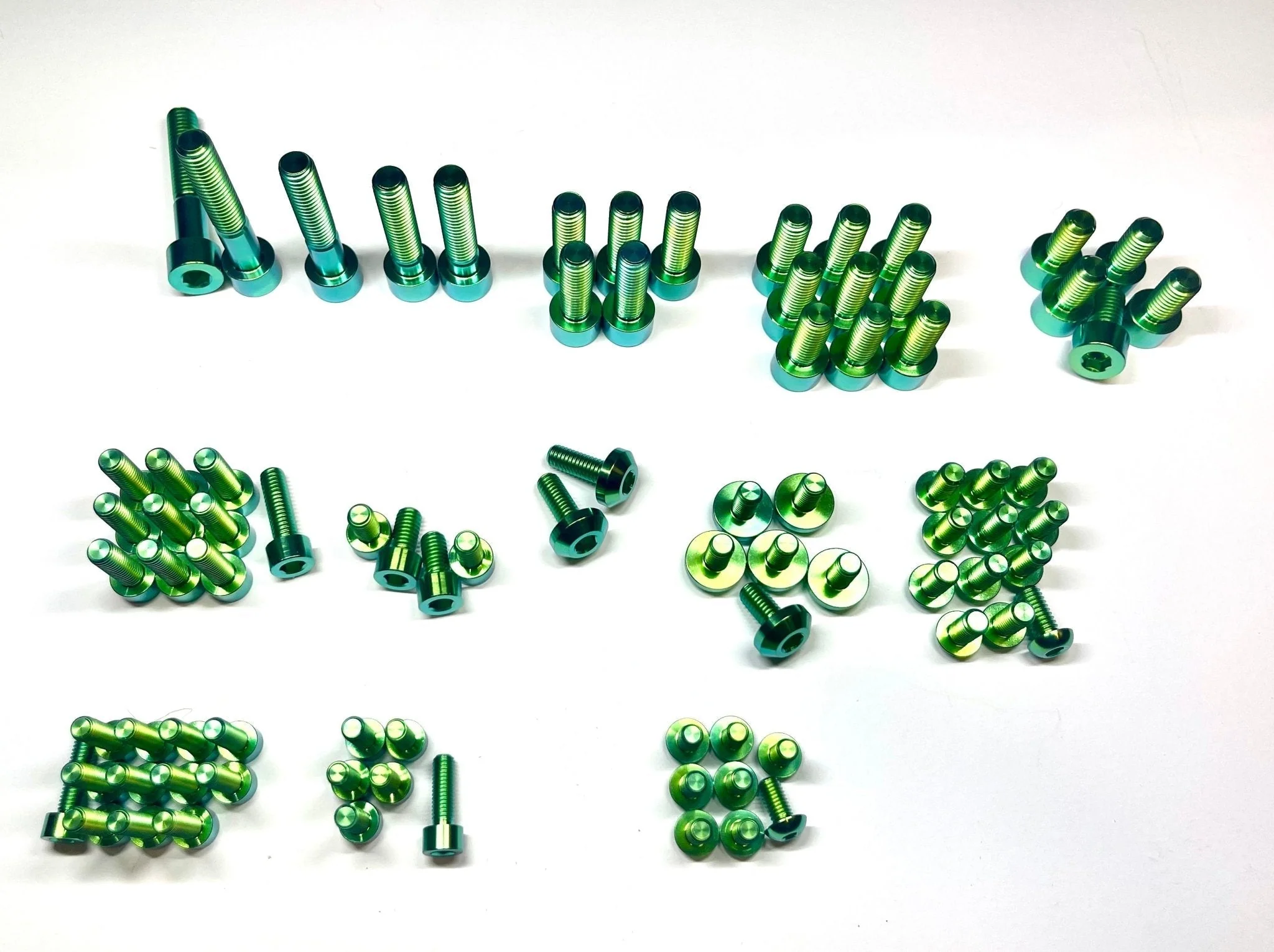

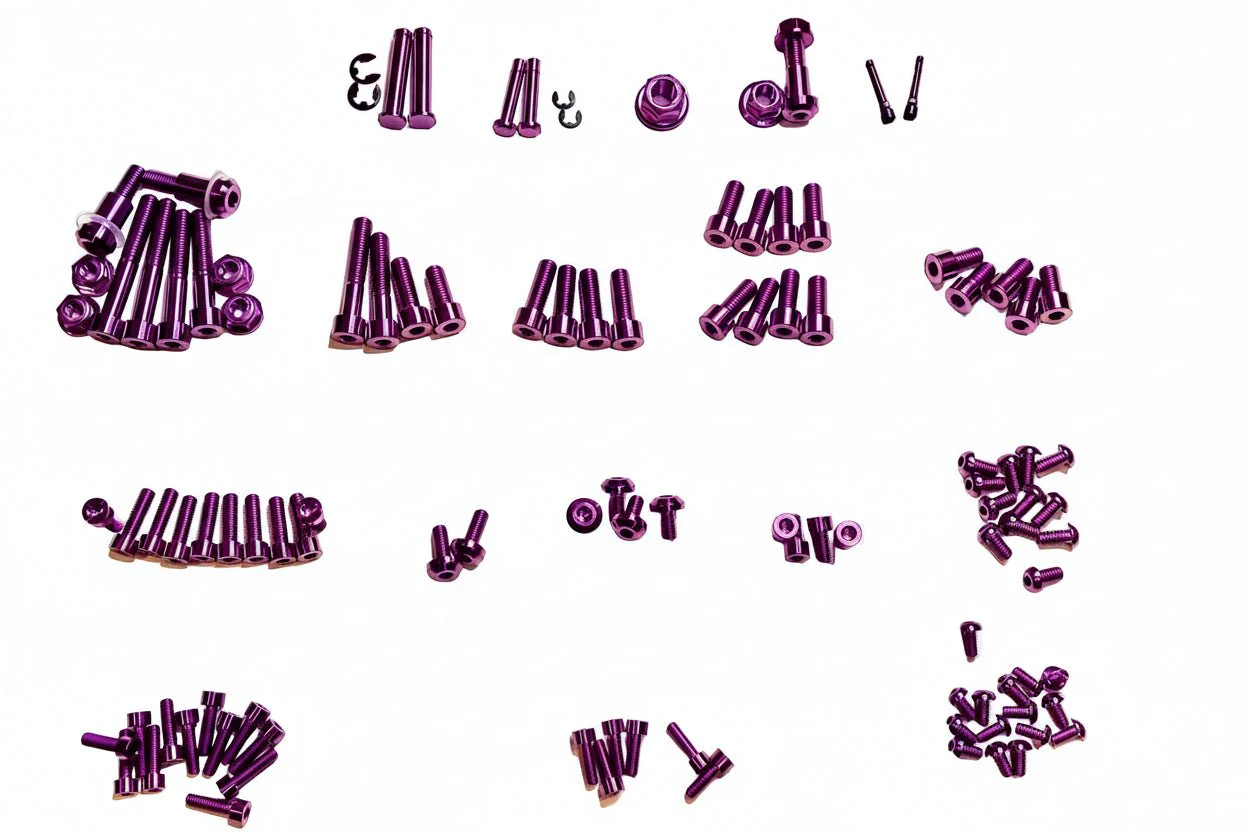

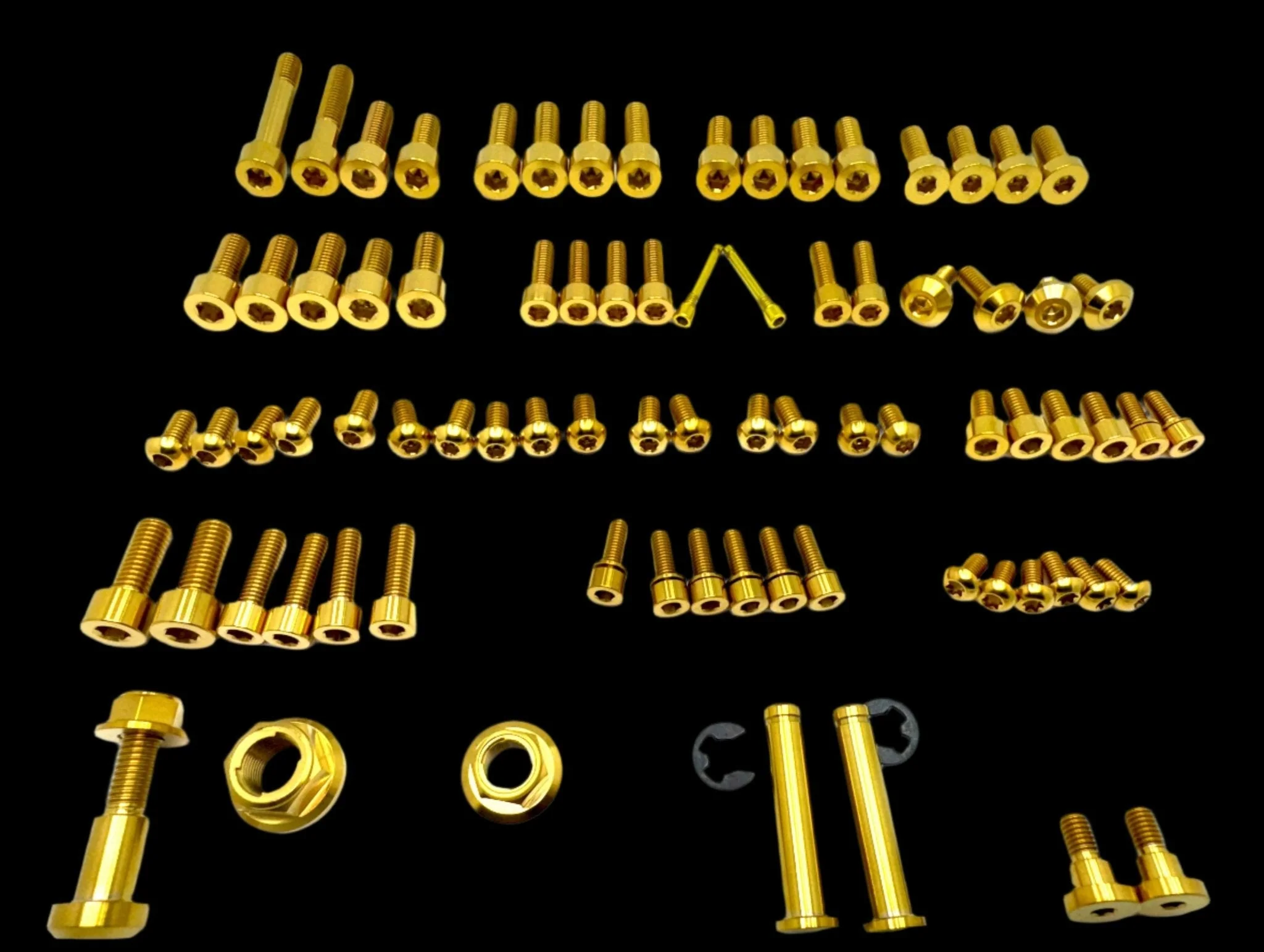

Photos are for color reference. Not actual make-up.
